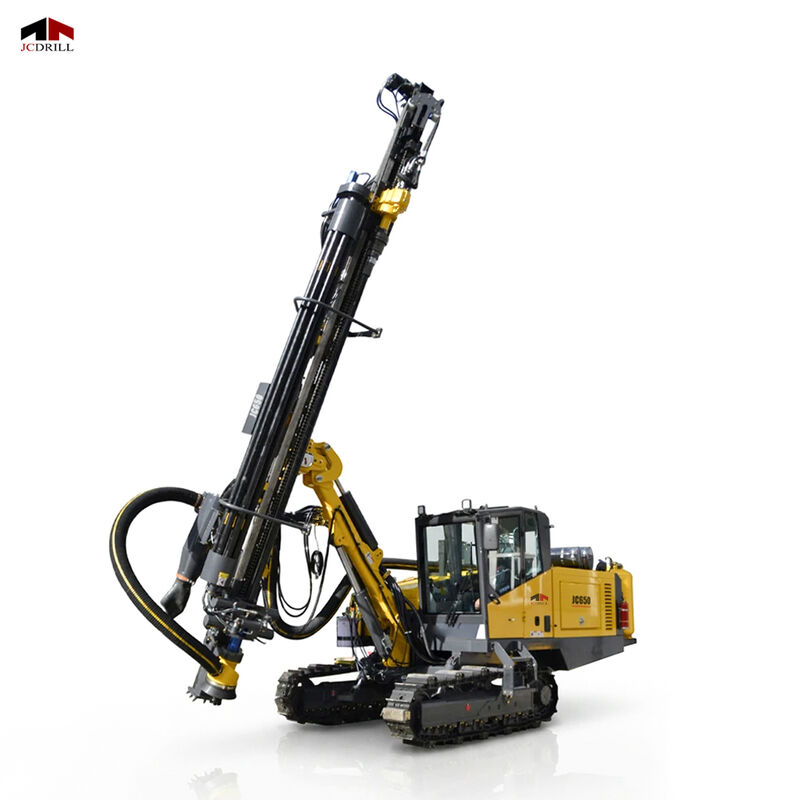

JC650 Crawler Hydraulic DTH Rock Blasting Drilling Rig

Name: JC650 Crawler Hydraulic DTH Rock Blasting Drilling Rig
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: JC650
Price: 17,506.00 USD
Availability: InStock

Marka Adı:	JCDRILL
Model Numarası:	JC650
Moq:	1 takım
fiyat:	Negotation
Ödeme Şartları:	T/T,L/C,Western Union,MoneyGram
Tedarik Yeteneği:	2000 takım

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO,CE

tip:

Kaya patlatma sondaj cihazı

Matkap Derinliği (RC ve Karotlu Delme):

60m

Matkap Çapı (RC ve Karotlu Delme):

115-178MM

Matkap açısı:

Sol 90° / Sağ 31°

Yem vuruşu:

4115mm

Başvuru:

Madencilik, Taş Ocağı

Motor:

Yuchai

Ağırlık:

9700kg

Motor Gücü:

92Kw

Boyut:

8610×2210×3410mm

Ambalaj bilgileri:

Standart ihracat taşıma paketi

Yetenek temini:

2000 takım

Vurgulamak:

hydraulic DTH rock drilling rig

crawler rock blasting rig

JC650 rock drilling machine

Ürün Tanımı

JC650 Crawler Hydraulic DTH Rock Blasting Drilling Rig

The JC650 Crawler Hydraulic DTH Drilling Rig is engineered for high-efficiency rock drilling with emphasis on safety, reliability, and reduced operational costs. Featuring a separate automatic rod handling system, it minimizes labor requirements and environmental impact while maintaining superior drilling performance. Ideal for various mining and civil engineering applications, this rig delivers precise drilling with minimal downtime.

Technical Specifications

Specification	Unit	JC650
Rock Hardness		F=6-20
Hole Diameter	mm	115-178
Hole Depth	m	60
Drill pipe	mm	89×3000
Pipe Capacity	Pcs	5+1
Hammer Size		4" / 5" / 6"
Rotary Head
Rotation Torque	N*m	3300
Rotation Speed	rpm	0-80
Feeding System
Feed Stroke	mm	4115
Compensation Length	mm	1000
Feeding / Pull up Force	N	20000
Single Feed Length	mm	3000
Mast / Slide Frame
Max Swing of Mast	°	Left 90° / Right 31°
Max Dump of Mast	°	147°
Drill Arm Tilt (Left & Right)	°	35° each side
Drill Arm Tilt (Front & Back)	°	Level 23° / 55°
Engine
Manufacturer		YUCHAI
Rated Power	Kw/ rpm	92/ 1600
Fuel tank capacity	L	360
Air Compressor Demand
Working Pressure	Mpa	1.7-2.5
General
Traveling Speed (Slow/Fast)	km/h	1.5 / 3
Gradeability	°	30
Dust Collection Method		Dry or Optional Wet Dust Collection
Net Weight	kg	9700
Overall Dimensions (L×W×H)	mm	8610×2210×3410

Key Features

Rotary Gearbox and Shock Absorption

Straight-gear rotary gearbox with high load capacity and adjustable rotation speed. Eaton hydraulic motor and reinforced shock absorbers reduce impact during drilling, extending gearbox life.

Automatic Rod Handling System

Enhances safety and minimizes operator fatigue. Rod magazine supports 5+1 rods; 3-meter rods enable drilling depth up to 18 m.

Robust Mechanical Arm

Locking-pin axles prevent rotation and axial movement, ensuring stable and secure connections.

Engine Intake System

Automatic pulse-cleaning air filter reduces dust accumulation and maintenance requirements. Ensures clean air intake for longer engine service life.

Adjustable Dust Hood

Moves vertically to remove rock cuttings efficiently and maintain clear observation of drilling operations.

Applications

Mining & Quarrying: Blasting and foundation drilling in open-pit mines and quarries.

Civil Engineering: Drilling for highways, railways, hydropower, and infrastructure projects.

Construction: Rock excavation and foundation work in large-scale construction projects.

Frequently Asked Questions

What is the maximum drilling depth of the JC650?

The JC650 can drill up to 60 meters, depending on rod length and rock conditions.

What types of projects is this rig suitable for?

It is suitable for mining, quarrying, and civil engineering projects such as highways, railways, hydropower, and large infrastructure works.

Does the rig support automatic rod handling?

Yes, the rig features an automatic rod handling system that improves safety and reduces operator fatigue.

Can the JC650 work with different air compressors?

Yes, it is compatible with multiple brands of air compressors for DTH rock drilling.

What maintenance features are included for the engine?

The engine has an automatic pulse-cleaning intake system that removes dust, reducing maintenance frequency and extending service life.

Are there customization options available?

Yes, options include RC Drilling Air Box & Cyclone, as well as customizable drilling depth and engine types.
